Product Details
Place of Origin: Foshan GuangDong
Brand Name: Violet Inkstone
Certification: iso9001
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Delivery Time: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
|
Type:
|
Fully Automated Vertical Surface Treatment Line
|
Application:
|
Aluminum Profiles
|
Process:
|
Anodizing + Electrophoretic Coatin
|
Automation:
|
Full-auto
|
|
Type:
|
Fully Automated Vertical Surface Treatment Line
|
|
Application:
|
Aluminum Profiles
|
|
Process:
|
Anodizing + Electrophoretic Coatin
|
|
Automation:
|
Full-auto
|

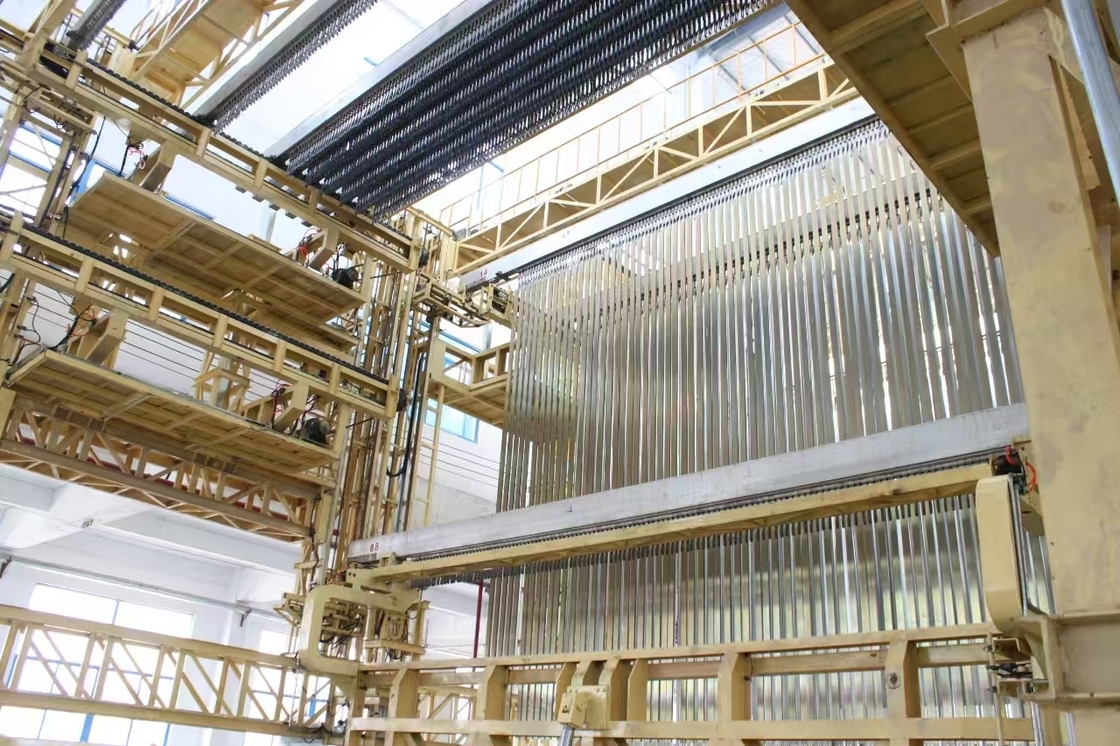

Automated Vertical Anodizing Production Line And Electrophoresis System
| 1 | Alloy | Aluminium 6061 to 6063 or others |
| 2 | Anodizing film thinkness | 10~ 12µm micron |
| 3 | Average coverage area | 350m²/T (ton) |
| 4 | Max aluminium profile length | 6500mm |
| 5 | Extrusion ratio | 2.5kg/m² |
| 6 | Working hour/m | 300d/m x 20h/d = 600h/m |
| 7 | Racking system | Two fixtures /rack |
| 8 | Racking operation | Mamual |
| 9 | Equipment Usage Rate | 0.9 |
| 10 | Power supply | AC 3phase 380v 50hz |
| 11 | Control Power | AC220V 50Hz |
| 12 | Water supply | 2kg/cm²·G |
| 13 | Hot steam | 6kg/cm²·G |
| 14 | Compressor air | 6kg/cm²·G |
Guangdong Qingyuan Xinyue Asia Stainless Steel Aluminum Co., Ltd Intelligent flexible full-automatic
horizontal anodizing electrophoresis line
1.The vertical oxidation production line has a designed maximum production capacity of 7500T/month. In the past ten years, our company has designed, manufactured and installed ten vertical oxidation lines.
2.The linear vertical oxidation production line and the method of returning the beam in the air are original creations of our company.
3.The only manufacturer of vertical oxidation electrophoresis equipment that provides design, production and installation of the entire line (turnkey project) services.
4.In the production process of the vertical oxidation production line, the chemical quantity is small and it is easy to drip dry. Therefore, the vertical oxidation production line has the characteristics of saving chemical industry and small water consumption.
5.Fully automatic control, only 2 people are required to control the production in the centralized control room, and the operation is simple.
6.Anbangde has independently developed the programming control system.
7.The positioning of the automatic handling machine is accurate, and the error is only 2mm.
FAQ
1. What should we provide if interested in your equipment ?
A. The material/size(max)/weight(max)of your workpieces.
B. What is the expected output of this equipment (8 hours/day,or 30 days/per month )?
C. The available workshop space which you plan to place this set of equipment(in LxWxH) ?
D. What fuel do you prefer to use for heating system:Electric,Gas,LPG,Diesel or others?
2. How to install equipment after purchasing your equipment ?
A. We will provide installation documents ,3D assembling drawing or installation video to guide the installation work.
B. Our engineer will guide the equipment's installation and debugging on line.
C. We can arrange installers to your factory to guide the installation work if needed,this service is chargeable.
D. After the debugging, will provide complete training and track the equipment's usage regularly.
3. How is your company's after-sales service done?
A. 1 year parts warranty, parts mainly include fans,burners,electric components of control cabinet,metal structure,wall panels etc,except the case of man-made damage.
B. As long as you have been using our equipment, our technical support will always be online
